Accessories for single-stage vacuum generators - Pneumatic sleeve valve

Accessories for single-stage vacuum generators - Pneumatic sleeve valve

This particular sleeve valve has been constructed to ensure a faster restoration of the atmospheric pressure inside the vacuum cups when the load is disconnected.
When it is pneumatically operated at the end of the cycle, it closes the generator discharge connection, conveying the supply air in the connection of use. In this way, the vacuum cups are immediately detached. It is suitable for generators with capacities not exceeding 15 mc/h and designed especially for series MSVE.
It is made of anodised aluminium, with an integrated silicone sleeve membrane.
Product code: 070290

8.37.1
CAD files on TraceParts
Image zoom
top of page go down

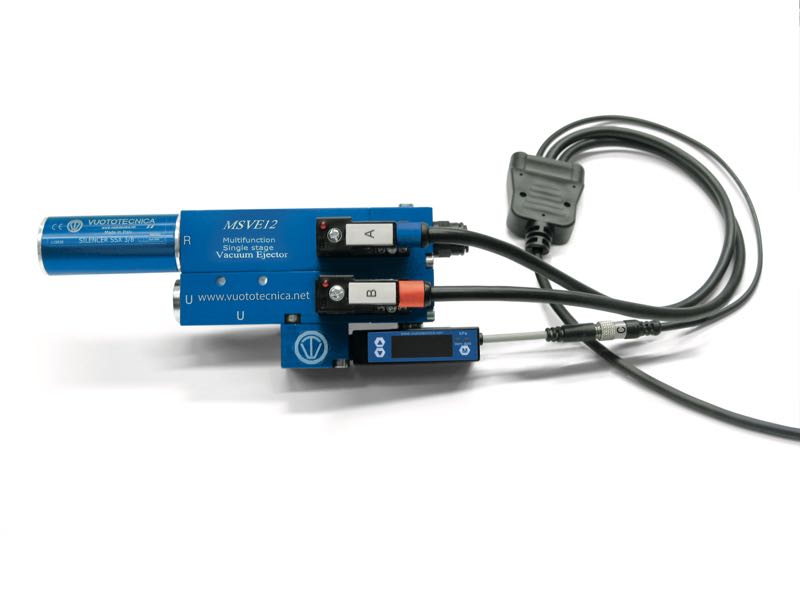

Single-stage and multi-function vacuum generators MSVE 8 and MSVE 12

Single-stage and multi-function vacuum generators MSVE 8 and MSVE 12


Product codes: MSVE8 MSVE12

CAD files on TraceParts
Image zoom
top of page go down
Single-stage and multi-function vacuum generators MSVE 20

Single-stage and multi-function vacuum generators MSVE 20


Product code: MSVE20

CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for multi-stage and multi-function vacuum generators, series MSVE

Accessories and spare parts for multi-stage and multi-function vacuum generators, series MSVE

- Cable set with built-in energy saving device
- Connector
- Cable with axial connector
- Cable with radial connector
- NC micro supply solenoid valve
- NC supply and blowing micro solenoid valve
- Digital vacuum switch
Product codes: 0015203 0015157 001220 001221 0007304 0015447 123010

Image zoom
top of page go down
Special products for vacuum generators

Special products for vacuum generators


Product codes: 3MSVE PVP750MDV-COS1

8.135
CAD files on TraceParts
Image zoom
top of page go down
Single-stage and multi-function vacuum generators, MSVE series

Single-stage and multi-function vacuum generators, MSVE series

The vacuum generators of this new series can fully drive a negative pressure gripping system. By means of coaxial shutters, the original compressed air supply system feeds large quantities of air to both the ejectors and the ejection system, thereby ensuring faster gripping and release of the load. These vacuum generators are equipped with single-stage ejectors, are powered by low pressure (max. 4 bar), and feature an extremely high emptying speed in relation to their suction flow rate. All this allows for increasingly faster high-performance work cycles. Two micro solenoid valves manage the compressed air supply to the vacuum ejector and adjustable discharge blow off. The intensity and duration of the latter are managed through a screw-type flow regulator. The check valve built into the suction connector maintains the vacuum in the event of a power outage. A digital vacuum switch, equipped with a display and commutation LED, manages the compressed air supply and provides a signal to start a cycle under safety conditions. An anodised aluminium distributor with vacuum connectors has an integrated suction filter that can be easily inspected. By activating the compressed air power micro solenoid valve, the generator creates vacuum for use. As soon as the set maximum value is reached, the digital vacuum switch acts on the electric coil of the micro solenoid valve and stops the air supply, reactivating it when the vacuum falls below the minimum level.
Besides maintaining the vacuum level within set safety values (hysteresis), this modulation allows for considerable compressed air savings. A second signal from the vacuum switch (also adjustable and independent with respect to the first) can be used to start the cycle when the vacuum level reached is suitable for use. Once the work cycle is completed, the micro solenoid valve that supplies compressed air to the generator is deactivated while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure upon use. The MSVE vacuum generators can be installed in any position and are suitable for suction gripping systems, handling metal sheets, glass, marble, ceramics, plastic, cardboard, wood, etc. and, in particular, for the industrial robotics sector, where equipment with excellent performance and limited weight and bulk are increasingly required.
Product codes: MSVE3 MSVE5

CAD files on TraceParts
Image zoom
