Vacuum cup holders

Micro cup holders 20 80 05

Micro cup holders 20 80 05

- Extremely reduced size and weight
- Stainless steel stem and spring
- Self-lubricating bush built in the threaded sleeve ensuring a perfect sliding of the stem and durability
- Indicated for Pick & Place units and handling machines for unloading plastic objects from a mould press
- Available in various versions with or without coupling
- Suitable for all vacuum cups with male M5 support
Product codes: 208005 208005SR 208005RR

2.01
CAD files on TraceParts
Image zoom
Go to the top Go down
Mini vacuum cup holders

Mini vacuum cup holders

The main feature of the cup holders described on these pages is their reduced size, which results in a reduced weight and bulk. They allow use of even very small cups, guaranteeing, given the same diameter, the same performance as the larger series.
They are composed of:
- A brass stem for fastening the cup
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation
- A spring to cushion the impact of the cup and to, at the same time, keep pressure with the load to be lifted
- A quick coupling for connection with the suction hose.
Product codes: 200430 200530 200630 200830 200930 201030 201230 201415 201430 201530 201730 201812 201830 202030 202230 202515 203015 203515 204015 204515 202530 203030 203530 202724 203024 204530 206030 205020 206528

Image zoom
Go to the top Go down
Mini vacuum cup holders for bellow cups

Mini vacuum cup holders for bellow cups


Product codes: 200650 200850 201116 201150 201630 201523 201823 201829 201835 201850 202062 201917 202023 202219 203426 202535 203032 204042 204328 203050 204050

Image zoom
Go to the top Go down
Mini vacuum cup holders with male and female threaded connectors

Mini vacuum cup holders with male and female threaded connectors

The cup holders described on these pages share the same features as the previously described ones, but differ for their brass stem, which has 1/8” and 1/4” gas threaded female connection, for the exclusive installation of cups with male threaded support and for the vacuum connection, which can either be radial or axial, upon request.
Product codes: 200635 200735 201038 201048 201038M 201048M 201038 201048 208025

Image zoom
Go to the top Go down
Mini vacuum cup holders with built-in spring

Mini vacuum cup holders with built-in spring

For a further bulk and weight reduction, as well as to meet the requirements of discharge machines for plastic moulding presses manufacturers, these cup holders are made with an in-built spring and an anodised aluminium cup fixing stem.
Also these cup holders allow the installation of cups with male threaded support only.
The particular shape of the brass drive bush for fastening the cup holder to the machine prevents any rotation of the stem and, therefore, of the cup.
The vacuum connection is radial.
Product codes: 208015 208020

2.18
CAD files on TraceParts
Image zoom
Go to the top Go down
Mini vacuum cup holders with compact stroke

Mini vacuum cup holders with compact stroke

The shorter stroke and their particular shape allow for further bulk and weight reduction of these cup holders, with respect to the previous mini vacuum cup holders.
The components are practically the same, only the vacuum fittings are different, since in these cup holders they are a radial standard hose-end fitting or two fittings, upon request.
They are particularly suited for small cups to be manually assembled with diameters ranging between 10 and 30 mm.
Product codes: 200713 201010 201210 201510 201810 202010 202210 202510 203010

Image zoom
Go to the top Go down
Mini vacuum cup holders with built-in bush

Mini vacuum cup holders with built-in bush

The reduced size and the particular shape of these cup holders allow them to be directly assembled to the vacuum manifold, saving time and eliminating pipes and fittings.
The hexagonal threaded bush for cup holder assembly with the vacuum manifold is equipped with a seal and has the task of driving and holding the brass stem for fixing the vacuum cup.
Product codes: 202511 203011 203511 204011 204511

Image zoom
Go to the top Go down
Mini vacuum cup holders with built-in bush, with male and female threaded connectors

Mini vacuum cup holders with built-in bush, with male and female threaded connectors


Product codes: 200811 201011 200811M 201011M

2.24
CAD files on TraceParts
Image zoom
Go to the top Go down
Mini vacuum cup holders with plunger valve

Mini vacuum cup holders with plunger valve

They share the same mechanical features at the other mini vacuum cup holders.
Their distinctive feature is the plunger valve solidly connected to a conical spear valve, which activates suction, and therefore creates vacuum, only when the cup comes into contact with the load to be lifted.
Product codes: 201260 201560 201860 202060 202260 202560 203060 203560 204060

Image zoom
Go to the top Go down
Mini vacuum cup holders with plunger valve and built-in bush

Mini vacuum cup holders with plunger valve and built-in bush

The technical and mechanical features are the same as for the mini vacuum cup holders with plunger valve described on the previous pages. Their distinctive feature is their threaded hexagonal bush, which allows them to be directly assembled to the vacuum manifold, thus saving time and eliminating pipes and fittings.
Product codes: 201265 201565 201865 202065 202265 202565 203065 203565 204065

Image zoom
Go to the top Go down
Mini vacuum cup holders with plunger valve with no springing

Mini vacuum cup holders with plunger valve with no springing

They have the same function as the mini vacuum cup holders with plunger valve but, for further bulk reduction, the cushioning spring, the threaded pipe with nuts for fixing to the automation and the quick coupler have been removed.
This type of cup holder is to be directly assembled to the vacuum manifold. To allow quick assembly, its end is provided with a threaded male shank.
Product codes: 201261 201561 201861 202061 202261 202561 203061 203561 204061

Image zoom
Go to the top Go down
Mini vacuum cup holders with built-in shut-off valve

Mini vacuum cup holders with built-in shut-off valve

In addition to having all the other features of the mini vacuum cup holders, these also have a built-in shut-off valve. The function of the shut-off valve is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration, thus preventing the reduction of the level of vacuum on the remaining cups of the system that are regularly gripping a load.
The advantage of this is that the placement or the exclusion of the non-gripping cups is no longer binding. Vacuum cups with a minimum diameter of 10 mm and maximum diameter of 50 mm can be assembled on these cup holders, provided they have a 1/8" male threaded gas support.
Product code: 209935

2.40
CAD files on TraceParts
Image zoom
Go to the top Go down
Mini anti-rotation vacuum cup holders

Mini anti-rotation vacuum cup holders

The technical features are the same as for the mini vacuum cup holders, with their distinctive features being their brass stem with hexagonal section and the steel drive bush with hexagonal hole. This prevents the stem from rotating on its axis, and, as a result, also the cup and its support from rotating.
They are suited for cups with male or female support with diameters ranging from 10 mm to 60 mm, but they have been specially designed for the installation of rectangular, concave and elliptical cups.
Product code: 209508 209528 209538

Image zoom
Go to the top Go down
Mini vacuum cup holders with magnetic sensor

Mini vacuum cup holders with magnetic sensor

These cup holders share the same technical features at the other mini vacuum cup holders. They are equipped with a magnetic sensor built into the cup holders to provide an electric signal to the machine every time the vacuum cup performs gripping.This is the reason why they are recommended to be used on piece counter handlers, boxing machines and in all those cases in which the presence of the gripped object is to be guaranteed. These cup holders have been designed for gripping chocolate, snacks, croissants and similar products and they are currently made in the version represented on this page. They can however be made with different vacuum cups upon request.
Product codes: 209902 209903

2.44
CAD files on TraceParts
Image zoom
Go to the top Go down
Mini vacuum cup holders fix

Mini vacuum cup holders fix

These are simple nickel-plated brass threaded bushes with screwing nuts for height adjustment and with threaded ends, one to assemble the vacuum cup with support and the other for the quick coupling connecting the suction hose.
Product codes: 207001 207005

2.45
CAD files on TraceParts
Image zoom
Go to the top Go down
Basic vacuum cup holders

Basic vacuum cup holders

These cup holders are built in a simple and rational way, guaranteeing maximum sturdiness and duration.
They are composed of:
- A brass stem for fastening the cup;
- A steel threaded sleeve equipped with two hexagonal nuts for a quick assembly of the cup to the machine;
- A spring for cushioning the impact of the cup, as well as for maintaining a constant pressure with the load to be lifted;
- A quick coupling for the connection to the suction hose.
The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 022510 023010 023510 022515 023015 022724 023024 023236 023515 024015 024510 026010 024515 025020 026528 025040 027540 0210040 0210050 025615 026515 027624 029024 0211024 028020 028510 028515 0211010 0211015

Image zoom
Go to the top Go down
Basic vacuum cup holders for bellows cups

Basic vacuum cup holders for bellows cups

The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 022023 022219 023426 022535 023032 024042 023050 023099 023055 024030 025030 026030 028530 024050 024060 025050 026050 028550 024328 025053 025250 025335 025630 027530 027542

Image zoom
Go to the top Go down
Basic vacuum cup holders with male and female threaded connectors

Basic vacuum cup holders with male and female threaded connectors

These basic vacuum cup holders also have the same characteristics and offer the same performance as those previously described. Their distinctive feature is the brass stem with a threaded male or female end for fixing the cup.
The cups to be assembled onto these vacuum cup holders must be equipped with the suited threaded support.
The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 020828 020865 020895 020828M 020865M 020895M 021028 021065 021095 021028M 021065M 021095M 021128 021165 021195 021128M 021165M 021195M 021228 021265 021295 021228M 021265M 021295M

Image zoom
Go to the top Go down
Basic vacuum cup holders with plunger valve

Basic vacuum cup holders with plunger valve

They offer the same mechanical performance at the basic mini vacuum cup holders. They are characterised by a plunger valve solidly connected to a conical spear valve, which activates suction, and therefore creates vacuum, only when the cup comes into contact with the load to be lifted.
The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 034510 036010 036515 038020 038510 038515 0311010

Image zoom
Go to the top Go down
Basic vacuum cup holders with plunger valve, with no springing

Basic vacuum cup holders with plunger valve, with no springing

Their function is the same as the previously described basic vacuum cup holders with plunger valve but, for further bulk reduction, the cushioning spring, the threaded bush with nuts for fixing to the automation and the quick coupler have been removed. This type of cup holder must be assembled onto the vacuum manifold by means of a threaded male shank on its end.
Product codes: 034511 036011 036516 038021 038511 038516 0311011 035041 037541 0310041

Image zoom
Go to the top Go down
Basic vacuum cup holders with built-in shut-off valve

Basic vacuum cup holders with built-in shut-off valve

Along with all the other features they share with the other basic vacuum cup holders, these have a built-in shut-off valve.
The function of the shut-off valve is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration, thus preventing the reduction of the level of vacuum on the remaining cups of the system that are regularly gripping a load.
The advantage of this is that the placement or the exclusion of the non-gripping cups is no longer binding.
Vacuum cups with a minimum diameter of 35 mm and maximum diameter of 85 mm can be assembled on these cup holders, provided they have a ¼” male threaded gas support.
The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 029928 029965 029995

2.97
CAD files on TraceParts
Image zoom
Go to the top Go down
Basic articulated vacuum cup holders

Basic articulated vacuum cup holders

The technical and mechanical features are the same as for the basic vacuum cup holders. Their distinctive feature is their articulated joint in hardened steel, which allows the flat cups installed on these cup holders to adapt themselves to the loads to be lifted with slightly tilted surfaces, as well as to compensate possible verticality errors that can arise between the cup holder and the automation fixing support.
The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 026520 028520 0211020 0211022

Image zoom
Go to the top Go down
Basic anti-rotation vacuum cup holders

Basic anti-rotation vacuum cup holders

The technical features are the same as for the previously described basic vacuum cup holders. Their distinctive features are their brass stem with hexagonal cross-section and the steel drive bush, also with hexagonal hole.
This structure prevents the stem and, as a consequence, the cup assembled onto it from rotating on its axis.
The drive bush is equipped with two fine thread ring nuts to guarantee an accurate fastening of the cup holder to the automation. They are suited for cups with diameters between 45 mm and 110 mm, although they have been specially designed for assembling rectangular, concave or elliptical cups.
The actual springing stroke is:
- For height C= 28 mm 16 mm
- For height C= 65 mm 49 mm
- For height C= 95 mm 74 mm
Product codes: 029528 029565 029595 0295281/4 0295651/4 0295951/4

2.102
CAD files on TraceParts
Image zoom
Go to the top Go down
Basic vacuum cup holders fix

Basic vacuum cup holders fix

These are simple nickel-plated brass threaded bushes with ring nuts for height adjustment and with male and female threaded ends, one to assemble the vacuum cup with support and the other for the quick coupling connecting the suction hose.
Product codes: 029101 029105 029106

2.103
CAD files on TraceParts
Image zoom
Go to the top Go down

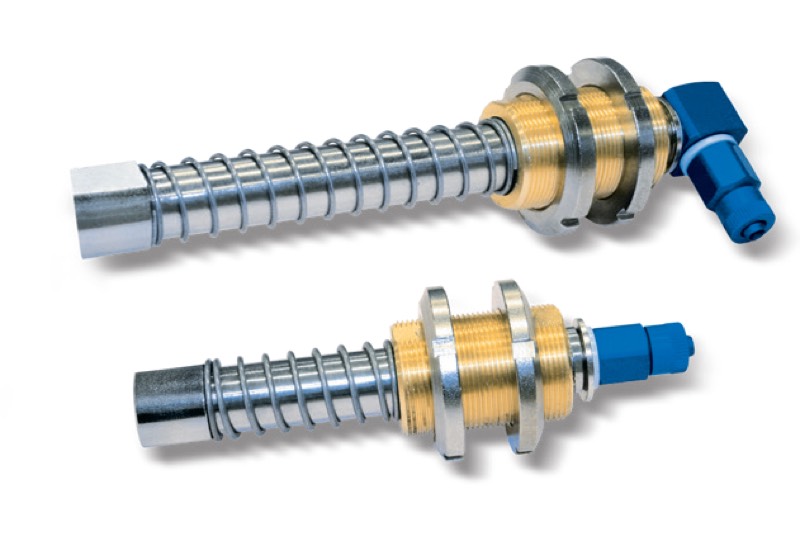

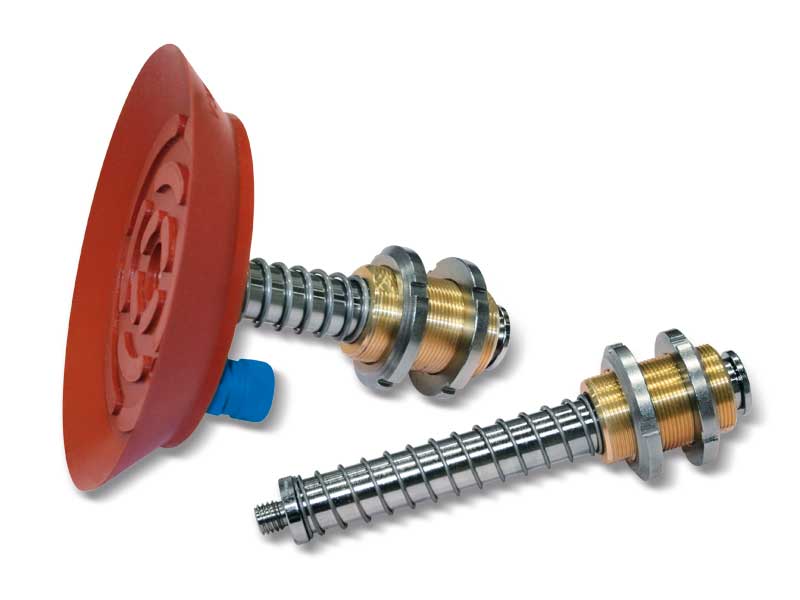

Special vacuum cup holders

Special vacuum cup holders

These special vacuum cup holders have been designed to lift and handle heavy loads and to withstand heavy-duty and continuous workloads in dusty or damp environments. They are composed of:
- A chrome-plated steel stem for fastening the cup
- A brass threaded support with self-lubricating bushes, equipped with two ring nuts for fastening the cup holder to the automation
- A spring to cushion the impact of the cup with the load to be lifted
- A quick coupling for connection with the suction hose
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 068510 068515 069024 0610040 0610050 0611010 0611015 0611024 0615010 0615036 0615015 0620010 0625010 0622010OF 0622010NF 0622010A 0630010 0635010

Image zoom
Go to the top Go down
Special vacuum cup holders for bellows cups

Special vacuum cup holders for bellows cups

The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 067542 0611030 0615030 0618030 0611058 0615074 0625030

Image zoom
Go to the top Go down
Special vacuum cup holders with male and female threaded connectors

Special vacuum cup holders with male and female threaded connectors

The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 061255M 0612110M 061255 0612110 061155M 0611110M 061355M 0613110M 061455M 0614110M 061555M 0615110M

Image zoom
Go to the top Go down
Special vacuum cup holders with plunger valve

Special vacuum cup holders with plunger valve

They share the same mechanical features at the special vacuum cup holders. The addition of a plunger valve solidly connected to a conical spear valve, which activates suction, and therefore creates vacuum, only when the cup comes into contact with the load to be lifted.
With these cup holders, it is no longer necessary to install cocks on the suction hoses; for this reason, they are recommended in all those cases in which there is a chance that not all the cups come into contact with the load to be lifted (because of an uneven or incomplete load).
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 068520 068522 0611020 0611022 0615020

Image zoom
Go to the top Go down
Special vacuum cup holders with push valve

Special vacuum cup holders with push valve

They share the same technical and mechanical features at the special vacuum cup holders. Their distinctive feature is the push valve on the cup support, which activates suction, and therefore creates vacuum, only when the cup is in contact with the load to be lifted.
With these cup holders, it is no longer necessary to install cocks on the suction hoses; for this reason, they are recommended in all those cases in which there is a chance that not all the cups come into contact with the load to be lifted (because of an uneven or incomplete load).
The same push valve can also be applied with no modification to the special articulated cup holders.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0615022 0620020 0625020 0630020 0635020

Image zoom
Go to the top Go down
Special vacuum cup holders with built-in shut-off valve

Special vacuum cup holders with built-in shut-off valve

Along with all the other features they share with the other special cup holders, these also have a built-in shut-off valve.
The purpose of the shut-off valve is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration. This thus prevents the reduction of the level of vacuum on the remaining cups of the system which are regularly handling the load.
The clear advantage of this system is that the positioning or the exclusion of the non-gripping cups are no longer binding. Cups with diameters between 85 mm and 150 mm can be assembled onto these cup holders, as long as they are provided with a threaded 3/8” gas female support.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 069955 0699110

2.132
CAD files on TraceParts
Image zoom
Go to the top Go down
Special articulated vacuum cup holders

Special articulated vacuum cup holders

The distinctive feature of these cup holders is their articulated joint in hardened steel, which allows the flat cups installed on these cup holders to adapt themselves to the loads to be lifted even if not completely parallel with the cup plane, as well as to compensate possible verticality errors that can arise between the cup holder and the automation fixing support.
Their technical and mechanical features are the same as the other previously described special vacuum cup holders.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0611012 0611017 0615012 0615017 0620012 0625012 0622012OF 0622012NF 0622012A 0630012 0635012

Image zoom
Go to the top Go down
Special articulated vacuum cup holders without GS articulated joint

Special articulated vacuum cup holders without GS articulated joint

Unlike the ones previously described, these special articulated vacuum cup holders have an articulated joint housed in the cup support. This has allowed a reduction of the overall dimensions without affecting performance.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0611032 0615032

Image zoom
Go to the top Go down
Special articulated vacuum cup holders with compact stroke

Special articulated vacuum cup holders with compact stroke

Marble and glass sheets are usually handled with cups that take them from a horizontal plane and place them vertically or vice-versa.
These special cup holders with compact stroke have been designed to minimise the lever forces between the cup and the automation fixing bush during the rotation of the sheets, as well as their sliding on the cups. They share all the technical features of the other previously described special cup holders but their overall dimensions are reduced to minimum by housing the articulated joint in the cup support, thus reducing the steel stem and the spring stroke length and modifying the brass bush, in order to allow it to be screwed directly onto the automation. Moreover, a special non-slip plastic coating fixed onto the cup support prevents the lifted load from slipping.
The actual springing stroke is:
- For height C= 29 mm 13 mm
Product codes: 0611042 0612742 0615042

Image zoom
Go to the top Go down
Special stainless steel anti-rotation vacuum cup holders

Special stainless steel anti-rotation vacuum cup holders

Designed for the robot-automotive sector, these cup holders offer ideal solutions to various handling problems that arise in all industrial sectors.
In addition the characteristics of the previously described special vacuum cup holders, their distinctive features are their brass stem with hexagonal cross-section and the steel drive bush, also with hexagonal hole. This structure prevents the stem and, as a result, the cup assembled onto it from rotating on its axis.
The drive bush is equipped with two fine thread ring nuts to guarantee an accurate fastening of the cup holder to the automation. Moreover, the two ends of the stem, also in stainless steel, are threaded male or female and interchangeable. The straight quick coupler for the connection to the suction hose is screwed to one end, while the cup with support is assembled onto the other end.
They are suited for cups with a diameter between 40 mm and 200 mm, although they are especially useful for the assembly of rectangular or elliptical vacuum cups.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 065580 065581 065582 0611080 0611081 0611082

2.145
CAD files on TraceParts
Image zoom
Go to the top Go down
Special anti-rotation vacuum cup holders with male threaded connector

Special anti-rotation vacuum cup holders with male threaded connector

The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 065590 065591 065592 065593 065594 065595 065596 0611090 0611091 0611092 0611093 0611094 0611095 0611096

2.146
CAD files on TraceParts
Image zoom
Go to the top Go down
Special anti-rotation vacuum cup holders with spherical swivel support

Special anti-rotation vacuum cup holders with spherical swivel support

In addition the characteristics of the previously described special anti-rotation vacuum cups, these cup holders are provided with a nylon spherical swivel support which allows to place and keep the cup in the desired place. Their fixing support is made with aluminium and is composed of two parts that, screwed together, allow to block the spherical joint, thus keeping the vacuum cup holder in place.
They are suited for cups with a diameter between 40 mm and 200 mm, although they are especially useful for the assembly of rectangular or elliptical vacuum cups.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0655100 0655101 0655102 06110100 06110101 06110102 0655110 0655111 0655112 0655113 0655114 0655115 0655116 06110110 06110111 06110112 06110113 06110114 06110115 06110116

Image zoom
Go to the top Go down
Special vacuum cup holders with double springing

Special vacuum cup holders with double springing

All the special vacuum cup holders previously described can be provided in the double springing version.
The cup holder fixing bush is located between two springs: the lower one cushions the impact of the cup with the load to be lifted during the approach phase, while the upper one cushions the impact of the bush with the cup holder end and gradually loads the cup during the lifting phase.
These cup holders are especially recommended when the load to be lifted is very heavy, rough or not perfectly flat.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 068513 068517 0611013 0611016 0615013 0615018 0620013 0625013 0622013OF 0622013NF 0622013A 0630013 0635013

Image zoom
Go to the top Go down
Special articulated vacuum cup holders with double springing

Special articulated vacuum cup holders with double springing

The distinctive feature of these cup holders is their articulated joint in hardened steel, which allows the flat cups installed on these cup holders to adapt themselves to the loads to be lifted even if not completely parallel with the cup plane, as well as to compensate possible verticality errors that can arise between the cup holder and the automation fixing support.
The cup holder fixing bush is located between two springs: the lower one cushions the impact of the cup with the load to be lifted during the approach phase, while the upper one cushions the impact of the bush with the cup holder end and gradually loads the cup during the lifting phase.
These cup holders are especially recommended when the load to be lifted is very heavy, rough or not perfectly flat.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0611014 0611018 0615014 0615019 0620014 0625014 0622014OF 0622014NF 0622014A 0630014 0635014

Image zoom
Go to the top Go down

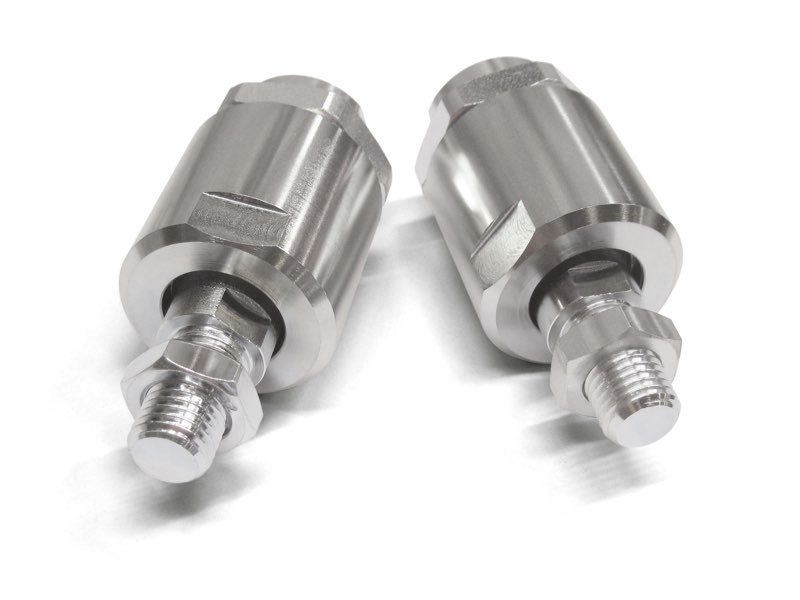

Spherical articulated joints

Spherical articulated joints

Our spherical articulated joints are made with hardened steel.
Assembled to the cup holders, they compensate offsets, orthogonality and flatness errors that often arise between the cups and the surface of the load to be lifted.
Product codes: GSM8 GSM12 GSM16

2.165
CAD files on TraceParts
Image zoom
Go to the top Go down
Ball joint couplings with GSL axial vacuum connection

Ball joint couplings with GSL axial vacuum connection

This series of couplings was designed to be installed on suckers with support, especially those that are flat or that have little lip, in order to allow them to easily adapt to the gripping surface of the load to be picked up, even if not perfectly parallel to the plane of the sucker itself or to compensate for any perpendicularity errors that often occur between the sucker holder and the fixing support of the automated device. The vacuum connection is axial and the hold is guaranteed by a special seal, always in contact with the ball joint. The sucker installed on them is free to rotate 360° degrees on its axis and to tilt up to 15°.
The joints are made entirely of brass, with the exception of the ball pivot, which is made of stainless steel. They can be fastened to the sucker using either the female or male threaded connection.
Product codes: GSL1/8 GSL1/4 GSL 3/8 GSL1/2

2.166
CAD files on TraceParts
Image zoom
Go to the top Go down
Positionable ball joint couplings with axial vacuum connection

Positionable ball joint couplings with axial vacuum connection

The positionable ball joints couplings in anodised aluminium allow the installed vacuum cups to be rotated 360° and to be tilted by up to 35° in order to properly position them with respect to the gripping surface on the object to be handled, while at the same time ensuring a perfect grip and proper suction through the joint itself.
Product codes: GSV1/8 GSV1/4 GSV3/8 GSVF1/8 GSVF1/4 GSVF3/8

2.167
CAD files on TraceParts
Image zoom
Go to the top Go down
Vacuum cup holder fixing supports

Vacuum cup holder fixing supports

The first two supports shown in this page are made with stainless steel and are suited for fastening the cup holder to the machine by means of a slotted cylindrical pin or a spherical pin housed in the machine.
The third support, on the other hand, is made with aluminium and it is composed of two parts that, screwed together, block the spherical joint, allowing to keep the cup holder in the desired position.
Product codes: 00FCH10 00FCH11 00FCH20 00FCH21 FCH16

Image zoom
Go to the top Go down
Vacuum cup holder fixing supports

Vacuum cup holder fixing supports

The supports described in the following in these pages are made with galvanised sheet steel and they are used to fasten the various types of cup holders to the automation, generally made up of a square tube frame.
The screw or the handle with which they are equipped quickly block the support in position.
Product codes: SFP01 SFP02 SFP03 SFP04 SFP05 SFP06 SFP07

Image zoom
Go to the top Go down
