Suction filters

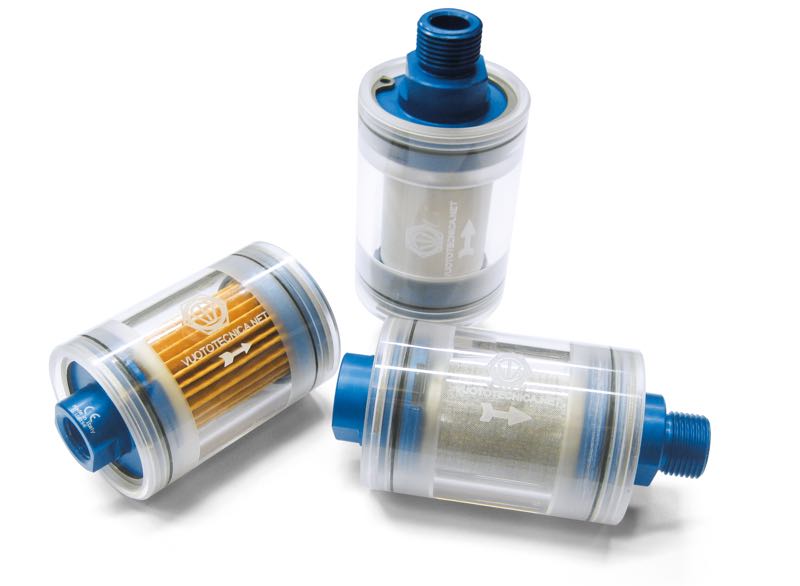

FCL in-line suction filters, with paper cartridge

FCL in-line suction filters, with paper cartridge

These small in-line filters retain impurities and very fine dust, interfering with the flow rate in a negligible manner. Thanks to their reduced size, they can be directly installed onto vacuum piping, close to the utilities (vacuum cups, vacuum clamping systems, etc.) for a fractionated filtration and a better visual control of all the plant suction points.
They are composed of a cylindrical transparent Plexiglass body closed by two anodised aluminium flanges kept in place by Seeger rings, where all the threaded male or female connections and seals are located. Inside there is a filtering cartridge with a filtering degree equal to 7 μ, which is made with a special treated paper that is pleated to increase the filtering surface. The filters can be inspected by simply removing one of the two flanges. Due to the paper filtering element, these filters are not recommended in presence of water or oil vapours or condensations.
Technical features
Operating pressure: from 0.5 to 3000 absolute mbar
Fluid temperature: from -20 to +60°C
Level of filtration: 7 μ
Product codes: FCL1 FCL2 FCL3 FCL1M FCL2M FCL3M FCL1MF FCL2MF FCL3MF

Image zoom
top of page go down

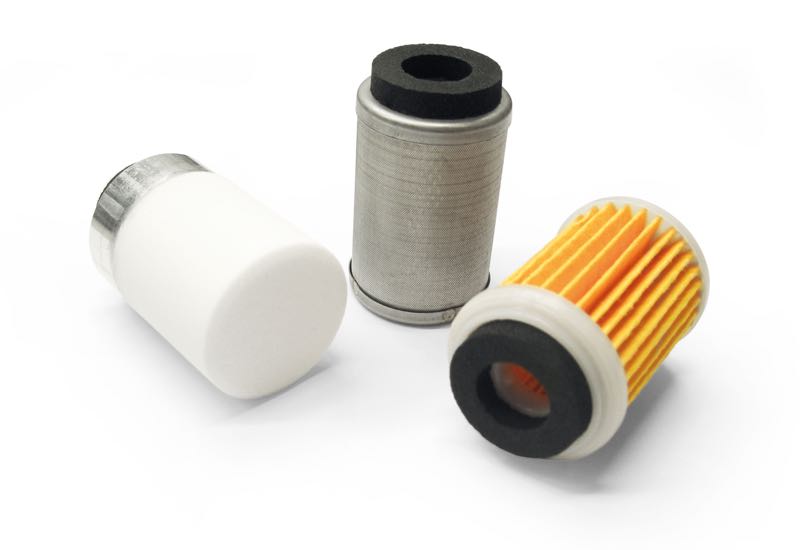

Paper filtering cartridges for FCL filters

Paper filtering cartridges for FCL filters

The cartridges described below are suited for FCL filters.
They are made with a special treated paper with a filtering degree equal to 7 μ, which is pleated in order to increase its surface and wrapped on two flanges in plastic material. They are recommended for retaining impurities and fine dust, but not in presence of water or oil vapours or condensations.
Product code: 00FCL03

5.02
CAD files on TraceParts
Image zoom
top of page go down

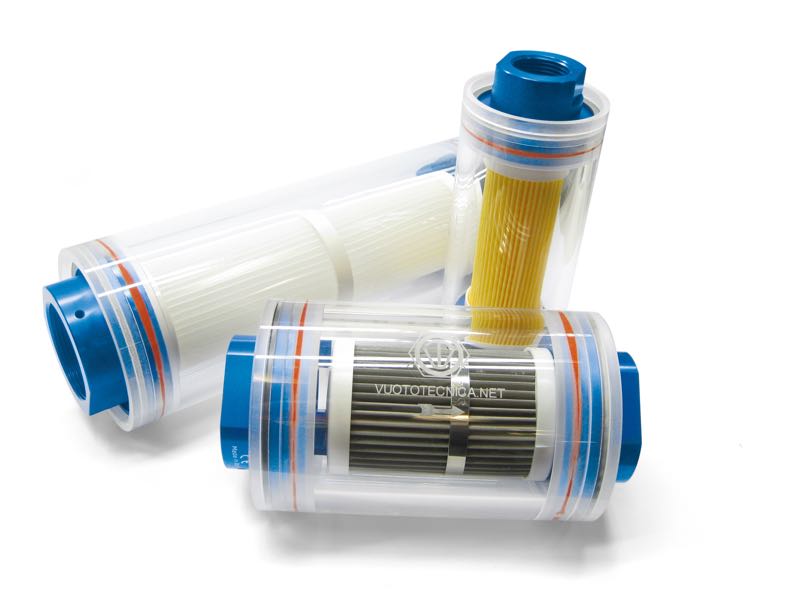

FCL 4, FCL 5, FCL 6 and FCL 7 in-line suction filters

FCL 4, FCL 5, FCL 6 and FCL 7 in-line suction filters

These large in-line filters retain impurities and very fine dust, interfering with the flow rate in a negligible manner.
They are composed of a cylindrical transparent Plexiglass body closed by two anodised aluminium flanges kept in place by Seeger rings, where all the threaded male or female connections and seals are located; inside there is a filtering cartridge.
The filtering cartridges illustrated and described on this page, installed in their own container, are produced with different materials that can be identified with the following abbreviations:
- Series RP. Pleated paper quick coupling filtering cartridge with double O-ring.
- Series RS. Pleated polypropylene mesh quick coupling filtering cartridge with double O-ring.
- Series RA. AISI 304 stainless steel mesh quick coupling filtering cartridge with double O-ring.
The filters can be inspected by simply removing one of the two flanges.
Technical features
Operating pressure: from 0.5 to 3000 absolute mbar Fluid temperature: from -20 to +60°C
Product codes: FCL4P FCL4S FCL4A FCL5P FCL5S FCL5A FCL6P FCL6S FCL6A FCL7P FCL7S FCL7A

5.02.1
CAD files on TraceParts
Image zoom
top of page go down
Paper filtering cartridges for FCL 4, FCL 5, FCL 6 and FCL 7 filters

Paper filtering cartridges for FCL 4, FCL 5, FCL 6 and FCL 7 filters

Product codes: SP/5M SS/5M SA/5M RP/5 RS/5 RA/5 RP/10/57 RS/10/57 RA/10/57

5.02.2
CAD files on TraceParts
Image zoom
top of page go down
FB suction filter with metal cartridge

FB suction filter with metal cartridge

Preventing impurities from reaching the vacuum pump is fundamental to guarantee the correct operation and long duration.
This range of filters, to be placed on the vacuum pump suction inlet or on the plant pipeline, has been designed for this purpose. Their simple and rational structure features threaded connections for the installation and a lid, very easy to open, to allow easily cleaning the filtering cartridge. The lids are made with die-cast aluminium, as are the containers, except for the models FB 5,FB 10 e FB 20 which are in transparent plastic material (cellulose acetate), particularly resistant to shocks.
The standard filtering cartridges are in profiled stainless steel mesh, with a filtering degree equal to 60 μ. Upon request, they can be supplied with a filtering degree equal to 100 or 300 μ.
The flow rate of these filters ranges from 5 to 300 m3/h.
Technical features
Operating pressure: from 0.5 to 3000 absolute mbar
Fluid temperature:
from -20 to +90°C for filters with aluminium container,
from -20 to +50°C for filters with containers in transparent plastic material
Level of filtration: 60 μ
Product codes: FB5 FB10 FB20 FB20A FB28 FB30 FB40 FB50 FB60

Image zoom
top of page go down
Stainless steel mesh filtering cartridges for FB filters

Stainless steel mesh filtering cartridges for FB filters

The cartridges described on this page are suited for FB suction filters.The standard ones are made with profiled stainless steel mesh with a filtering degree equal to 60 μ.
Upon request, the same cartridges can be supplied with a filtering degree equal to 100 or 300 μ.
They are recommended for retaining impurities even in presence of water and oil vapours or condensations, but not for retaining fine and impalpable dust.
Product codes: 00FB03 00FB13 00FB22 00FB34 00FB45 00FB52

5.11
CAD files on TraceParts
Image zoom
top of page go down
FC suction filtres with paper cartridge

FC suction filtres with paper cartridge

These filters have been designed to allow vacuum pumps to operate even in very dusty environments. Installed onto the pump suction inlet, they are able to retain fine and impalpable dust interfering with the flow rate in a negligible manner.
The filtering cartridge is made with a special treated paper with a filtering degree equal to 5 - 7 μ, which is pleated to increase its surface and is contained in a double perforated sheet steel enclosure. The filtering cartridge container as well as the lid are made with sheet steel and varnished with a special anti-oxidation paint.
A seal located between the lid and the container guarantees a perfect vacuum seal between the two elements. The release clamps applied onto the container allow a quick opening of the lid for the filtering cartridge inspection or replacement.
Due to the paper filtering element, these filters are not recommended in presence of water or oil vapours or condensations.
Technical features
Operating pressure: from 0.5 to 2000 absolute mbar
Fluid temperature: from -20 to +60 °C
Level of filtration: 5 - 7 μ
Product codes: FC10 FC20 FC25 FC30 FC35 FC38 FC55 FC40 FC50 FC60 FC80 FC100

Image zoom
top of page go down
Paper filtering cartridges for FC filters

Paper filtering cartridges for FC filters

The cartridges described on this page are suited for FC suction filters.
They are made with a special treated paper with a filtering degree equal to 5 - 7 μ, which is pleated to increase its surface and is contained in a double perforated sheet steel enclosure.
They are recommended for retaining fine and impalpable dust, but not in presence of water and oil vapours and condensation.
Product codes: 00FC04 00FC08 00FC15 00FC22 00FC24 00FC33 00FC29 00FC34

Image zoom
top of page go down
FO oil-bath suction filters

FO oil-bath suction filters

In presence of a considerable amount of fine or impalpable dust, the traditional suction filter would require a cartridge with a filtering degree so high that, along with reducing its operation autonomy, it would also reduce the vacuum pump suction flow rate.
Oil-bath suction filters have been studied in order to overcome this problem.The main feature of these filters is the ability to retain the smallest and most impalpable dust particles, without reducing the vacuum pump suction flow rate.
Oil-bath filters are composed of a sheet steel head and container coupled with an interposed seal and clamped by release clamps.
Inside, besides the oil bowl, there are two steel wool filtering cartridges, one of which is detachable and washable, while the other is fixed. The release clamps guarantee easy access for cleaning operations.
They can be used with any kind of oil, even drain oil, as long as it has a minimum viscosity degree. The ideal oil is the same one used for the pump. Oil-bath suction filters are not recommended for dry vacuum pumps.
They are currently available for capacities up to 300 m3/h.
Technical features
Operating pressure: from 0.5 to 2000 absolute mbar
Fluid temperature: from -20 to +90 °C
Level of filtration: ≤1 μ
Product codes: FO20 FO30 FO50 FO60

5.18
CAD files on TraceParts
Image zoom
top of page go down
Steel wool filtering cartridges for FO filters

Steel wool filtering cartridges for FO filters

The cartridges described in this page are suited for FO oil-bath suction filters.
They are made with pressed steel wool contained in a double perforated sheet steel enclosure. Their function is to retain fine or impalpable dust impregnated with the filter oil.
Product codes: 00FO04 00FO09 00FO14 00FO19

5.19
CAD files on TraceParts
Image zoom
top of page go down
FO long operation autonomy oil-bath suction filters

FO long operation autonomy oil-bath suction filters

In presence of fine or impalpable dust, the traditional suction filter would require a cartridge with a filtering degree so high that, along with reducing its operation autonomy, it would also reduce the vacuum pump suction flow rate.
Oil-bath suction filters have been studied in order to overcome this problem.
The main feature of these filters, in addition to their high autonomy, is their ability to retain the finest suctioned impalpable dusts without reducing the suction flow rate of the pump.
Oil-bath filters are composed of a sheet steel head and container coupled with an interposed seal and clamped by release clamps.Inside, besides the oil bowl, there are two steel wool filtering cartridges, one of which is detachable and washable, while the other is fixed. The release clamps guarantee easy access for cleaning operations.
Two visual indicators allow monitoring of the oil level and the degree of clogging.
They can be used with any kind of oil, even drain oil, as long as it has a minimum viscosity degree. The ideal oil is the same one used for the pump.
Oil-bath suction filters are not recommended for dry vacuum pumps.
They are currently available for 200 and 300 m3/h capacities.
Technical features
Operating pressure: from 0.5 to 2000 absolute mbarTemperature of fluid: from -20 to +90°C
Level of filtration: ≤1 μ
Quantity of oil:
FO 160 - 6.3 L
FO 300 - 12.5 L
Product codes: FO160 FO300

5.20
CAD files on TraceParts
Image zoom
top of page go down
FS syphon suction filters

FS syphon suction filters

These filters retain impurities and liquids extracted through vacuum cups or vacuum clamping systems, preventing them from entering into the vacuum pumps.
They are composed of:
- A transparent Plexiglas cylindrical container with an extractable lid to allow inspection and cleaning
- A check valve located on the suction inlet for preventing the air from returning in the filter when the pump is idle
- A stainless steel mesh filtering cartridge with a filtering degree equal to 60 μ, also located on the suction inlet to retain dust and solid impurities
- A two-way manual valve for service vacuum interception.
- A two-way manual valve for restoring the atmospheric pressure inside the filter
- A radial vacuum gauge the direct reading of the level of vacuum
- A magnetic level switch that stops the pump when the suctioned liquid exceeds the safety level
- A rigid pipe connected to the service to convey the air flow and the sucked liquid to the bottom of the container
- A check valve at the bottom of the filter to automatically drain the sucked liquid and impurities every time the atmospheric pressure is restored inside the filter
- A cock applied on the aforementioned check valve for manual liquid drainage
- A sturdy metal bracket for fixing the filter to the wall.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product codes: FS5 FS10 FS20 FS25 FS30 FS50

5.21
CAD files on TraceParts
Image zoom
top of page go down
Syphon filter systems with automatic by-pass FS 50 BP and FS 60 BP

Syphon filter systems with automatic by-pass FS 50 BP and FS 60 BP

The system, composed of two siphon filters, operates initially with suction through filter 1 and with filter 2 excluded. When the suctioned liquid reaches the float on the level switch, automatically by means of the 1” 1/2 three-way vacuum interception solenoid valve for item FS 50 BP and 2” for item FS 60 BP, an exchange is made and suction passes through filter 2.
The input of atmospheric air into filter 1 via the ½” three-way solenoid valve installed on its lid, accumulated liquid is allowed to discharge automatically through the check valve with tap on the bottom of the filter. Once liquid has been discharged, after a pre-set time (this operation can be timed), the solenoid valve returns to its initial position, thus allowing recreation of a vacuum inside the filter through a small flexible hose connected to the main vacuum piping.
With this arrangement, there will not be any decrease in the level of vacuum for use when the suction exchange will be carried out between the two filters. This exchange will take place when the liquid reaches the level switch float on filter 2 and, from that moment, the operations described above will be repeated.
The filter system is composed of:
- 2 Plexiglas siphon filters with aluminium lids and complete with accessories, with a flow rate of 38 L each
- 2 1” 1/2 gas three-way servo-operated vacuum solenoid valves, item 07 06 13 for item FS 50 BP and 2” gas servo-operated vacuum solenoid valves, item 07 08 13 for item FS 60 BP
- 2 ½” gas three-way servo-operated vacuum solenoid valves, item 07 03 13.
- 4 1” 1/2 gas two-way manual valves for vacuum interception, item 13 07 10 for item FS 50 BP and 2” gas for vacuum interception, item 13 08 10 for item FS 60 BP
- 2 Manual ½” gas two-way valves, for atmospheric air input, item 13 03 10
- 1 Switchgear enclosed in a special watertight metal box, for single phase electrical voltage Volt 230/ 50 Hz
- 1 Coated profile steel frame to mount all above-described components
The siphon filter system with automatic by-pass is recommended in all those cases in which there is a strong presence of liquid in suction fluids and where machine shut-down for the discharge of liquids suctioned by traditional siphon filters is not allowed.
Technical features
Operating pressure: from 0.5 to 2000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product code: FS50BP FS60BP

5.22
CAD files on TraceParts
Image zoom
top of page go down
Special filters

Special filters


Product codes: 2FS50BPM1 GAFL01M1

5.23
CAD files on TraceParts
Image zoom
top of page go down
FP series filtering cartridge containers with compression sealing

FP series filtering cartridge containers with compression sealing

The containers of the FP series are suited for the filtering cartridges with compression sealing and are composed of a transparent plastic container and a blue plastic head screwed together with an interposed seal. The number after the item indicates the length in inches of the necessary filtering cartridge.
The cartridge can be chosen in various materials:
pleated paper, pleated polypropylene mesh and stainless steel mesh AISI 304. The following pages describe the filtering cartridges with compression sealing, with all the indications regarding dimensions, materials and filtering degree of each one of them.
Technical features
Operating pressure: from 0.5 to 9000 absolute mbar
Temperature of suctioned fluid: from -10 to 45°C
Product codes: FP25/4 FP30/4 FP25/7 FP30/7 NP

5.24
CAD files on TraceParts
Image zoom
top of page go down

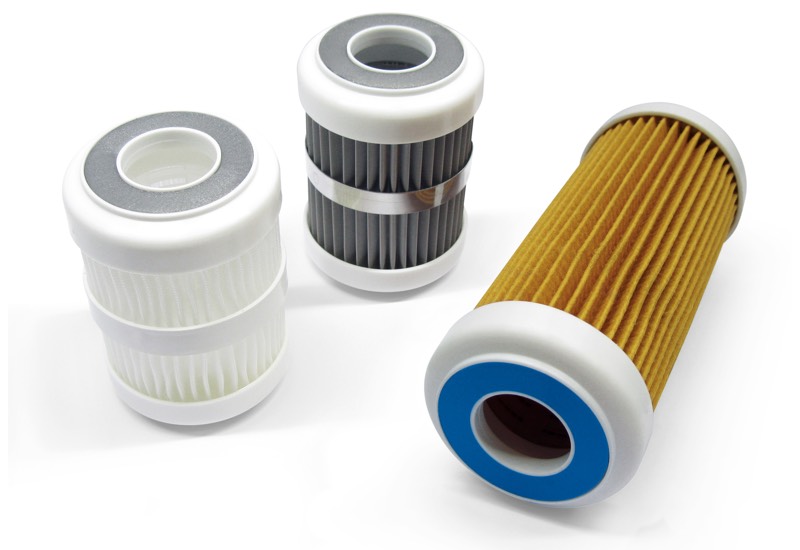

Filtering cartridges with compression sealing

Filtering cartridges with compression sealing

The filtering cartridges described in this page, once installed on their container, are able to retain the impurities and dust contained in the sucked fluid, interfering with the vacuum pump or generator capacity in a negligible manner.
They are produced with different materials that can be identified with the following abbreviations:
- Series SP. Pleated paper filtering cartridge with compression sealing.
- Series SS. Pleated polypropylene mesh filtering cartridge with compression sealing.
- Series SA. AISI 304 stainless steel mesh filtering cartridge with compression sealing.
The number after the article indicates the length in inches of the filtering cartridge.
Product codes: SP/4 SP/7 SS/4 SS/7 SA/4 SA/7

5.25
CAD files on TraceParts
Image zoom
top of page go down
FM series quick coupling filtering cartridge containers

FM series quick coupling filtering cartridge containers

The containers of the FM series are suited for quick coupling filtering cartridges and are composed of a transparent SAN (Styrene-acrylic nitrile) container and a head with a reinforced polypropylene ring nut, coupled together with an interposed seal.
The number after the item indicates the length in inches of the necessary filtering cartridge.The cartridge can be chosen in various materials: pleated paper, pleated polypropylene mesh and AISI 304 stainless steel mesh. The quick coupling filtering cartridges are described on page 5.28, with all the indications regarding dimensions, materials and filtering degree of each one of them.
Technical features
Operating pressure: from 0.5 to 9000 absolute mbar
Temperature of suctioned fluid: from -10 to 45°C
Product codes: FM20/7 FM25/7 FM30/7 FM25/10 FM30/10 FM40/10 FM50/10 FM60/10 FM40/20 FM50/20 FM60/20 NF

5.26
CAD files on TraceParts
Image zoom
top of page go down
FK series quick coupling filtering cartridge containers

FK series quick coupling filtering cartridge containers

The containers of the FK series are suited for quick coupling filtering cartridges and are composed of a transparent PET (Polyethylene terephthalate) container and a head with a brass ring nut coupled together with an interposed seal.
The number after the item indicates the length in inches of the necessary filtering cartridge.
The cartridge can be chosen in various materials: pleated paper, pleated polypropylene mesh and AISI 304 stainless steel mesh. The quick coupling filtering cartridges are described on page 5.28, with all the indications regarding dimensions, materials and filtering degree of each one of them.
Technical features
Operating pressure: from 0.5 to 9000 absolute mbar
Temperature of suctioned fluid: from -10 to 45°C
Product codes: FK25/7 FK30/7 FK25/10 FK30/10 FK50/10 FK60/10 FK30/20 FK50/20 FK60/20 NK

5.27
CAD files on TraceParts
Image zoom
top of page go down
Quick coupling filtering cartridges

Quick coupling filtering cartridges

The filtering cartridges described in this page, once installed on their container, are able to retain the impurities and dust contained in the sucked fluid, interfering with the vacuum pump or generator capacity in a negligible manner.
They are produced with different materials that can be identified with the following abbreviations:
- Series RP. Pleated paper quick coupling filtering cartridge with double O-ring.
- Series RS. Pleated polypropylene mesh quick coupling filtering cartridge with double O-ring.
- Series RA. AISI 304 stainless steel mesh quick coupling filtering cartridge with double O-ring.
The number after the article indicates the length in inches of the filtering cartridge.
Product codes: RP/7 RP/10 RP/10/57 RP/20 RP/20/57 RS/7 RS/10 RS/10/57 RS/20 RS/20/57 RA/7 RA/10 RA/10/57 RA/20 RA/20/57

5.28
CAD files on TraceParts
Image zoom
top of page go down
